ZHKY850 Noncontact Rotary Torque Transducer 500N.m High Speed and Small Size for Torque Sensing in Compact Environments

Ask Lasest Price
Model Number :	ZHKY850
Brand Name :	SNC
Price :	$600-1,000/units

Add to Cart

Product Details
Company Profile

ZHKY850 Noncontact Rotary Torque Transducer 500N.m High Speed and Small Size for Torque Sensing in Compact Environments

ZHKY850 Low capacity high speed small size noncontact rotary torque transducer 500N.m

Product Description

1, Technical features:

Small size, light weight, easy to install;
Can measure static and rotating torque;
High precision, stable performance, strong anti-interference;
Continuous measurement of positive and negative torque without repeated zero;
No wear ring and other wear parts, support high-speed running for long time;
Can withstand 150% load;
Strong anti-interference, can install in any position and any direction
The sensor can work independently from the secondary instrument, can connect directly with the measurement board, PLC or DCS composition of torque measuring device

2, Application areas:

Detection of motor, internal combustion engine and other rotating power equipment, output torque and power;
Detection of motor, wind, pumps, mixers, reducer, transmission, hoist, propeller, drilling machinery and other equipment, load torque and input power;
Detection of a variety of machining centers, automatic machine tool work in the process of torque;Detect the torque and efficiency of the various rotating power equipment systems;
Detection of torque and at the same time can detect speed, shaft power;
Can be used to manufacture viscometer, electric, pneumatic, hydraulic torque wrench;

3, Parameters:

Torque capacity	5Nm, 10Nm, 20Nm, 50Nm, 100Nm, 200Nm, 500Nm(optional)
Power supply	±15V DC(Suitable for frequency signal output),
Power supply	24V DC(suitable for current or voltage siganl output)
Torque signal	5~15Khz(Amplitude 12V, Zero 10kHz), 4~20mA, 1~5V, 0-10V
Speed range	0~1000, 3000, 6000, 8000RPM
Speed siganl	No speed measuring for standard product,
Speed siganl	if with speed measurement, L length increased by 30mm
Accuracy	±0.25%, ±0.5%
Annual stability	0.3%/year
Insulation resistance	≥200MΩ(100VDC)
Working temperature	-20~60℃(support customized high temperature -20~120℃)
Relative humidity	0~90%RH
Overload ability	150%
Frequency response	1ms

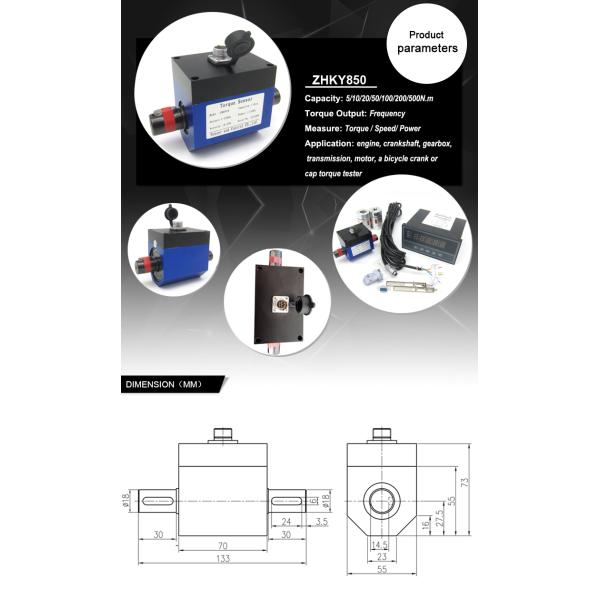

4, Prodcut Details

ZHKY850 Noncontact Rotary Torque Transducer 500N.m High Speed and Small Size for Torque Sensing in Compact Environments

Nm	d	L	E	A	F	C	B	H	Key (LxWxH)	Note	Weight
5-100 N.m	18	133	30	70	101	55	55	18	25x6x6	Single	1kg
100-500N.m	25	155	30	91	115	65	65	18	30x8x7	single	1.5kg

Accessories

ZHKY850 Low capacity high speed small size noncontact rotary torque transducer 500N.m

Product Uses

ZHKY850 Low capacity high speed small size noncontact rotary torque transducer 500N.m

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

ZHKY850 Low capacity high speed small size noncontact rotary torque transducer 500N.m

Packaging & Shipping

ZHKY850 Low capacity high speed small size noncontact rotary torque transducer 500N.m

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
